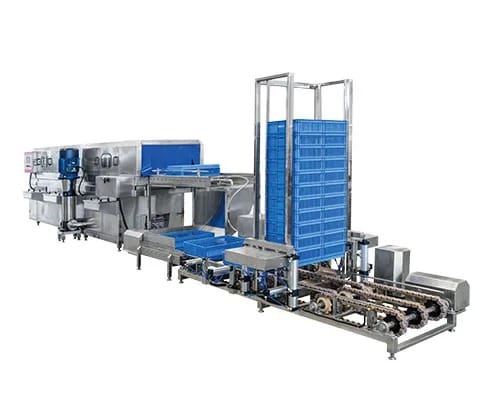

High-pressure water spray basket cleaning machine

I. Introduction

The high-pressure water spray basket cleaning machine is a continuous and fully automated cleaning system designed for the food processing industry. It is mainly used for washing baskets, trays, and various containers.

The machine utilizes a high-pressure spray system combined with cleaning solution and hot water to effectively remove oil, food residues, and other contaminants from container surfaces.

This equipment is widely used in facilities that handle large volumes of containers, such as fresh vegetable distribution centers, central kitchens, large-scale catering services, and food processing plants.

The entire machine is typically manufactured from food-grade 304 stainless steel, ensuring durability and compliance with strict hygiene standards.

II. Working Principle

The high-pressure basket washing machine operates through continuous conveying, multi-stage spraying, and progressive cleaning. The process includes the following steps:

1. Loading and Conveying

Containers are placed on the conveyor and automatically transported through the cleaning system.

2. Stage 1: Hot Alkaline Water Spraying

High-pressure alkaline water (40–70°C) is sprayed onto the containers. Detergent can be added if required.
This stage primarily dissolves and removes grease and heavy contaminants.

3. Stage 2: Hot Water Spraying

Hot water is used for secondary rinsing to further remove dirt and wash away remaining alkaline solution.

4. Stage 3: Clean Water Spraying

Fresh tap water at room temperature performs the final rinse, removing any remaining cleaning agents and cooling the containers.

5. Water-Saving Design

Many machines include a water recycling system.
Fresh water from the final rinse flows into the second stage and then into the first stage, significantly reducing water consumption.

6. Optional Drying

After washing, baskets can be dried using an optional air-drying system if required.

III. Equipment Parameters

1. Equipment Dimensions

The machine size can be customized according to customer requirements.

2. Power

Power consumption varies depending on configuration, including the number of pumps, heating system capacity, and drying fans.

3. Production Capacity

Capacity is typically measured in units per hour. Actual throughput depends on basket size and contamination level.

IV. Equipment Advantages

Choosing a high-pressure basket washer offers several key benefits:

1. High Efficiency Cleaning
High-pressure spraying ensures thorough removal of grease, food residues, and contaminants.

2. Automated Operation
Continuous conveyor operation reduces manual labor and improves production efficiency.

3. Water-Saving Design
Integrated water circulation significantly lowers water consumption.

4. Hygienic and Safe
Food-grade stainless steel construction meets strict food processing hygiene standards.

5. Durable and Flexible
Robust structure and customizable configurations allow the machine to adapt to different production requirements.
